Binder – Drying and Heating Chambers – Series FED Avantgarde.Line – With forced convection and enhanced timer functions
BINDER heating chambers of the FED Avantgarde.Line series provide almost unlimited capacity and are particularly adaptable. With advanced timing functions and a controllable fan, temperature and convection conditions are easily controlled.
Benefits
- Best energy efficiency on the market
- Excellent temporal and spatial temperature accuracy
- USB connection for recording data
- Temperature range up to 300 °C
BINDER heating chambers with forced convection are available in a range of different versions. The Classic.Line FED series features heating chambers with forced convection and enhanced timer functions that promise high quality and reliability. However, it is in their performance that these heating chambers really impress. Not to mention that they can be flexibly adapted to suit specific requirements. Heating chambers with forced convection are ideal for a range of tests, for example, as well as being the top choice for drying, sterilization, and storage in industrial and research laboratories. Heating chambers with forced convection in the FED series operate within a temperature range of between 5 °C and 300 °C. They feature the patented APT.line™ preheating chamber technology that enables highly homogeneous temperature control with forced convection. Test conditions are consistent across the entire usable space, regardless of the amount or size of the sample. The FED series heating chambers come with enhanced timer functions, which can be used to control temperature parameters and convection conditions as required, and the fan can be controlled digitally.
Impressively Versatile Heating Chambers With Forced Convection From BINDER
BINDER heating chambers with forced convection and enhanced timer functions are well-suited to a wide range of industry, research, science, and quality assurance applications. They combine high levels of functionality, performance, and quality with excellent usability. The modern design of these innovative heating chambers makes for a further advantage. The FED series is made up of impressively versatile units that meet the requirements of modern laboratories and guarantee maximum process reliability.
Technical Specifications
| Model | Housing dimensions not incl. fittings and connections W x H x D | Internal dimension W x H x D | Net weight | Interior volume |

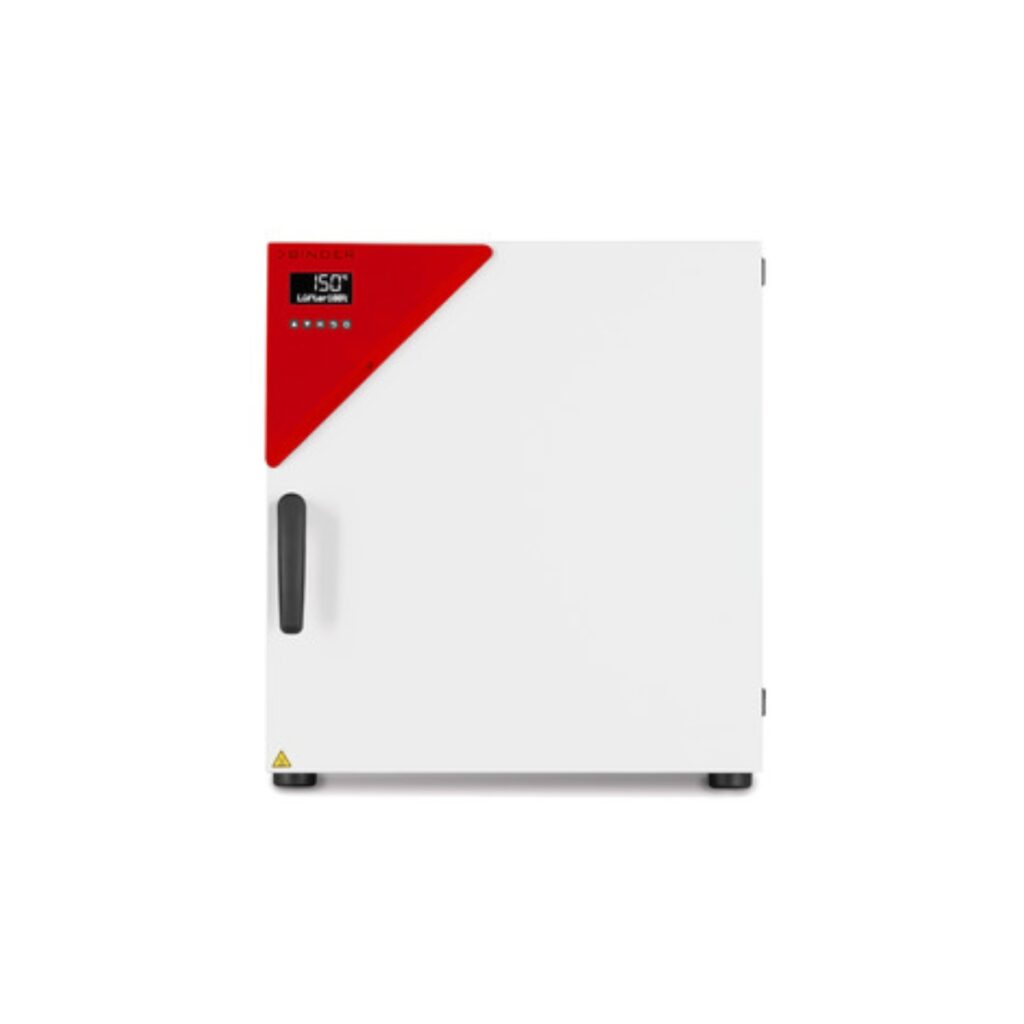

| FED 56 | 560 x 625 x 565 mm | 400 x 440 x 345 mm | 41 kg | 60 L |
| FED 115 | 710 x 705 x 605 mm | 550 x 550 x 385 mm | 57 kg | 116 L |
| FED 260 | 810 x 965 x 760 mm | 650 x 780 x 515 mm | 85 kg | 259 L |
| FED 720 | 1165 x 1590 x 870 mm | 1000 x 1300 x 570 mm | 166 kg | 741 L |
Available Models
- Temperature range: ambient temperature plus 10 °C to 300 °C
- Up to 30% lower energy consumption compared to conventional units on the market
- High temperature accuracy thanks to APT.line™ technology
- Adjustable fan speed
- Controller with LCD display and enhanced time functions
- Electromechanical control of the exhaust air flap
- 2 chrome-plated racks
- Stackable
- Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
- Ergonomic handle design
- Ethernet interface
- USB port for recording data
- Temperature range: ambient temperature plus 10 °C to 300 °C
- Up to 30% lower energy consumption compared to conventional units on the market
- High temperature accuracy thanks to APT.line™ technology
- Adjustable fan speed
- Controller with LCD display and enhanced time functions
- Electromechanical control of the exhaust air flap
- 2 chrome-plated racks
- Stackable
- Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
- Ergonomic handle design
- Ethernet interface
- USB port for recording data
- Temperature range: ambient temperature plus 10 °C to 300 °C
- Up to 30% lower energy consumption compared to conventional units on the market
- High temperature accuracy thanks to APT.line™ technology
- Adjustable fan speed
- Controller with LCD display and enhanced time functions
- Electromechanical control of the exhaust air flap
- 2 chrome-plated racks
- Stackable
- Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
- Ergonomic handle design
- Ethernet interface
- USB port for recording data
- Temperature range: ambient temperature plus 12 °C to 300 °C
- Up to 30% lower energy consumption compared to conventional units on the market
- High temperature accuracy thanks to APT.line™ technology
- Adjustable fan speed
- Controller with LCD display and enhanced time functions
- Electromechanical control of the exhaust air flap
- 2 chrome-plated racks
- Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
- Ergonomic handle design
- Ethernet interface
- USB port for recording data
